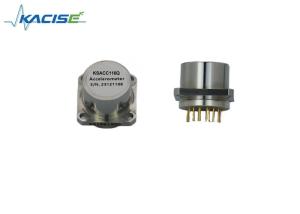

KSACC116Q Quartz Accelerometer ±80g Range 35g Weight

KSACC116Q Quartz Flexible Accelerometer
Product Introduction
Quartz flexible accelerometer is a precision instrument comprises quartz glass flexible support and advanced servo circuit based on the principal of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration. Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
At present, our quartz flexible accelerometer has formed a series of products, types from the high-precision μg KSACC111Q accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSACC117Q accelerometer, as many as dozens, and widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields, providing signals for navigation, guidance, control, leveling, monitoring and other systems.
Feature
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Application
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment

Technical Specifications

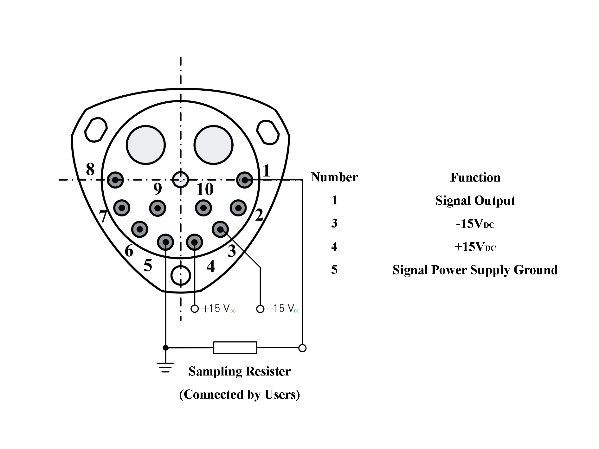

Dimensions
Unit:mm

quartz flexible accelerometer ±80g range

quartz accelerometer 35g weight

electronic gyroscope sensor with warranty

KSACC116Q Quartz Accelerometer ±80g Range 35g Weight Images
