Banner T30UX Series Ultrasonic Sensor with Temperature Compensation 4-20mA Analog Output and IP67 Rating for Industrial Proximity Detection

Brand Name : Banner

Model Number : T30UXIAQ8

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Certification : CE

Model : T30UXIAQ8

Sensor Type : Ultrasonic Wave

Power : DC

Analog Output Configuration : 4-20 MA

Indicator : LED(s)

Contact Now

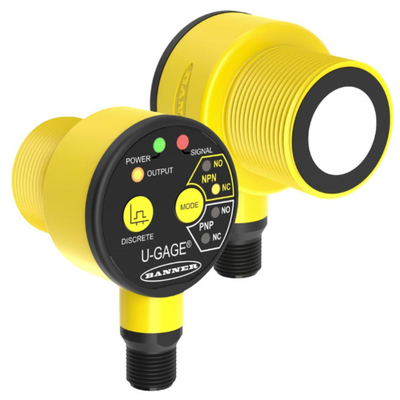

Banner T30UX Series Temperature-Compensated Ultrasonic Sensor
The Banner T30UX Series Ultrasonic Sensor (Model: T30UXIAQ8) is a compact, right-angle device designed for precise proximity detection with built-in temperature compensation. Ideal for industrial applications requiring reliable distance measurement, it offers a sensing range of 100mm to 1000mm (1m) and supports 4-20mA analog output, along with configurable switching options. Its rugged construction (IP67 rating) and wide operating temperature range (-40° to 70°C) make it suitable for harsh environments, while user-friendly features like TEACH-Mode programming and remote teaching simplify setup and enhance operational safety.
Banner T30UX Series Ultrasonic Sensor with Temperature Compensation 4-20mA Analog Output and IP67 Rating for Industrial Proximity Detection Banner T30UX Series Ultrasonic Sensor with Temperature Compensation 4-20mA Analog Output and IP67 Rating for Industrial Proximity Detection Banner T30UX Series Ultrasonic Sensor with Temperature Compensation 4-20mA Analog Output and IP67 Rating for Industrial Proximity Detection Banner T30UX Series Ultrasonic Sensor with Temperature Compensation 4-20mA Analog Output and IP67 Rating for Industrial Proximity Detection
Key Features
  • Temperature Compensation: Built-in temperature compensation minimizes measurement errors caused by ambient temperature fluctuations (temperature effect: 0.02% of sensing distance/°C), ensuring consistent accuracy across -40° to 70°C.
  • Flexible Output Options: Available with 4-20mA analog output (or optional 0-10VDC) for continuous distance monitoring, and configurable switching outputs (NPN/PNP, NO/NC) to adapt to diverse control needs.
  • Compact & Durable Design: Right-angle T30 housing with a 30mm threaded head and fully encapsulated electronics; IP67 rating resists dust and water, suitable for wet or dusty industrial environments.
  • Easy Configuration: TEACH-Mode programming via push buttons simplifies setup of detection windows, eliminating the need for potentiometers. Remote teaching capability enhances safety in hard-to-reach or hazardous locations.
  • Clear Status Indicators: LED indicators (Power: green, Signal: red, Output: amber, Mode: amber) provide real-time feedback on sensor operation, including power status, signal strength, and output activation.
  • Wide Sensing Range: 100mm to 1000mm detection range with a short dead zone (10% of max range), enabling reliable detection of various objects regardless of color, material, or surface texture.
Technical Specifications
Brand Name Banner
Model T30UXIAQ8
Sensing Beam Ultrasonic
Power DC
Sensing Mode Proximity
Indicator LED(s)
Analog Output Configuration 4-20 mA
Max Sensing Distance 1000 mm
Minimum Sensing Distance 100 mm
Power Supply 10-30 V dc
Temperature Effect 0.02% of sensing distance/°C
IP Rating IP67
Output Protection Protected against short circuit conditions
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
