H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity

Brand Name : KACISE

Model Number : KGD-ATRS-313

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Detection Principle : Thermal Conductivity Technology (TC)

Detection Type : H₂

Detection Range : 0 - 4%vol

Detection Accuracy : ±(0.1%vol + 10% of the reading)

Data Refresh : ≤1s

Response Time : T80 ≤ 20s

Contact Now

Thermal Conductivity Hydrogen Sensor KGD - ATRS - 313
Product Introduction
The KGD - ATRS - 313 thermal conductivity hydrogen sensor is a hydrogen sensor based on thermal conductivity (TC) technology. It uses the method of gas thermal conductivity measurement to achieve early and rapid warning for the thermal runaway of automotive power batteries, lithium - battery energy storage, and hydrogen energy applications, thereby improving safety. Meanwhile, it can effectively monitor hydrogen leakage and transmit the measurement signals to the main control system through CAN communication. This solution features accurate measurement, fast response time, wide measuring range, low power consumption, and long service life.

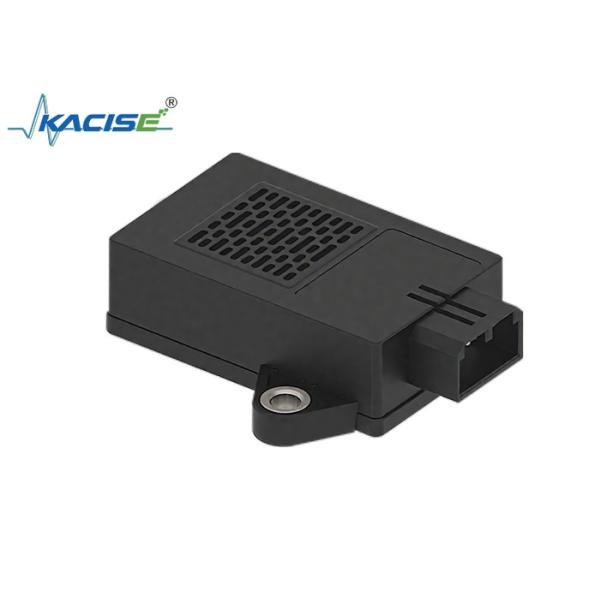

H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
Product Features
  • For H₂ measurement, thermal conductivity technology (TC) is adopted, with an accuracy of ±(0.1%vol + 10% of the reading) within the measuring range of 0 - 4%vol.
  • Fast response time with T80 ≤ 2s, and a service life of up to 15 years.
  • The sensor adopts a vehicle - grade mature circuit design, enabling it to adapt to harsh in - vehicle and energy - storage environments.
  • CAN real - time communication, and the protection level meets the requirements of IP54.
Technical Parameters
Items Details
Detection Principle Thermal Conductivity Technology (TC)
Detection Type H₂
Detection Range 0 - 4%vol
Detection Accuracy ±(0.1%vol + 10% of the reading)
Data Refresh ≤1s
Response Time T80 ≤ 20s
Output Method CAN
Designed Service Life >15 years
Operating Conditions -40°C - +85°C; 0 - 99%RH (non - condensing)
Storage Conditions -40°C - +95°C; 0 - 99%RH (non - condensing)
Operating Pressure 80kPa - 120kPa
Protection Level IP54
Supply Voltage 9VDC - 36VDC, rated voltage +12VDC/+24VDC (compatible)
Average Working Current ≤60mA
