High precision corrosion resistant ceramic core level gauge sensor with accuracy ±0.25%

Brand Name : Kacise

Model Number : GXPS440

Certification : intrinsically safe prevent explode, isolation explosion proof certificate, CE

Place of Origin : China (Mainland)

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability : 1000 Pieces per Week

Delivery Time : 5-8 work day

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Pressure range : 0~0.5……50mH2O

Overload pressure : 1.5times Rated pressure

Secondary containment : 3 times rated pressure

Accuracy : ±0.25%F.S, ±0.5%F.S, ±1.0%F.S selectable

Operating Temperature : -20°C~80°C (or -20°C~120°C )

Compensation temperature : -10°C~70°C (digital compensation of all temperature range)

Output signal : 4~20mA, 0~5Vdc, 1~5Vdc,0~10Vdc,0~20mA

Power supply : 10~30Vdc, 6~24Vdc, 11~30Vdc/ac,

Contact Now

Corrosion Resistance 0.25%FS High Precision Level Transducer

1.Product Description

GXPS440/450 series pressure transmitter is a high reliability, high stability, high-precision ceramic cores for the sensitive components of the level transmitter.

Widely used in small-scale level measurement, such as water, oil, natural gas, liquefied petroleum gas and other corrosive liquids and gases.

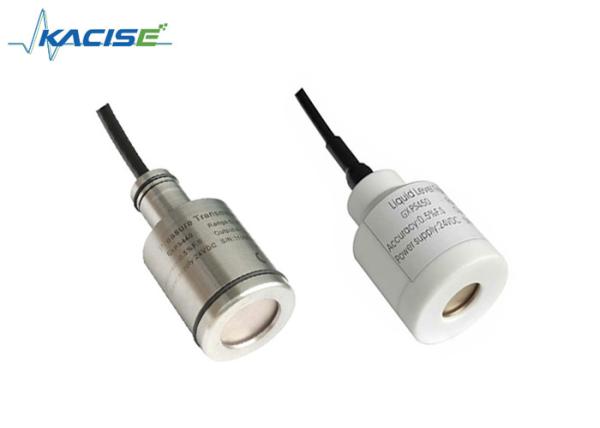

GXPS440 is the 316L SS shell plus the ceramic capacitor core body, GXPS450 is uses a titanium alloy + PTFE shell, ceramic cores used internationally renowned brands, Programmable transmitter conversion circuit, and can facilitate its zero and full scale calibration and slight shift.

According to different use of site we can configure the wear resistance, oil resistance, acid and alkali resistant, high strength special air conductivity cable.

Prevent Explode intrinsically safe, isolation explosion-proof, explosion-proof, CE certification.

Two wire system of circulation output lead non-polar; three-wire voltage output for AC and DC

2.Parameter

Spec. Value
Pressure range

0~1….500mH2O; 9.8KPa…4900KPa

0.09bar…49bar; 0.09atm…48atm

1.4psi… 711psi; 2.8inchHg…1400inchHg
Overload pressure 1.5 times nominal pressure
Secondary Containment 3 times nominal pressure
Accuracy 0.25%F.S, 0.5%F.S(MARS portfolio for high accuracy)
Stability Typical value 0.15%F.S, Max. value: 0.25%F.S
Operating temperature -20°C~100°C (-20°C~120°C available)
Compensated Temperature Range -10°C~70°C
Medium Compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties 2 wires 3 wires
Output signal 4~20mA 0/1~5V 0~10V
Power supplier 10~30Vdc 8~24Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω) >100kΩ
Minimum isolation between case & terminations >100M Ω@50V
Surge immunity 500V@60 second
Display panel 5th grade sealing , IP68
Pressure port T=submersible F= split style
Response time 10ms
Shock and vibration 10g/5~2000Hz, axes X/Y/Z 20g sine 11ms
Certificate Intrinsically safe mode, insulation explosion proof, CE
EMI/ EMC EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection conduction of air pressure 8000V, housing, conduction of cable pressure 4000V

3. Feature

  • Multiple pressure range optional, small measuring range available
  • 0/4-20mA, 0/1-5V,0-10V output optional
  • Submersible and thread installation method optional
  • Non polarity 2 line current output
  • AC,DC voltage output optional
  • Two-wire system lead wire non-polarity

High precision corrosion resistant ceramic core level gauge sensor with accuracy ±0.25%

High precision corrosion resistant ceramic core level gauge sensor with accuracy ±0.25%High precision corrosion resistant ceramic core level gauge sensor with accuracy ±0.25%

4.Application Field

  • Strongly corrosive liquid level measuring
  • Precious liquids level measurement
  • Corrosion medium
  • Chemistry experiment
  • A field of high temperature
  • Inflammable medium class
  • Explosion proof site
